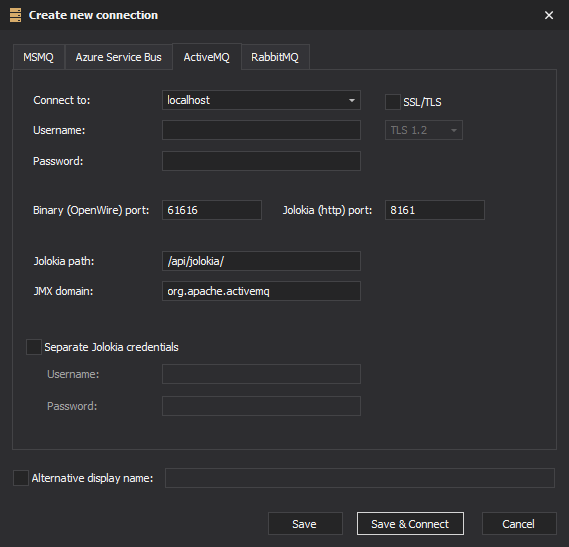

Connect to ActiveMQ

../_images/ActiveMQ.png

QueueExplorer needs Jolokia (REST management interface) to be installed and enabled. By default it is installed and runs on port 8161.

Also, QueueExplorer needs access to standard ActiveMQ OpenWire port, by default 61616 to receive and send messages.

SSL/TLS

When SSL/TLS is turned on, QueueExplorer will use secure connections for both http and OpenWire protocols. That means both of these ports should be adjusted to their SSL/TLS port numbers. If you didn’t edit them manually, QueueExplorer will change that automatically.

You can also choose version of SSL/TLS protocols used. In newer setups default TLS1.2 should be the choice.

Separate Jolokia credentials

When this checkbox is checked, QueueExplorer will use separate set of username/password for Jolokia.

Jolokia Url

If non-default path for Jolokia REST API is configured on the broker, it should be configured here.

JMX domain

If non-default JMX (MBean) domain is configured on the broker, it should be configured here.
